F-Type 1937 covered goods wagon

The F-type boxcar has been one of the most popular wagons in the FS fleet for more than 60 years, from the late 1930s through the 1980s and 1990s. Because of this, and its widespread use throughout the Italian peninsula, it is perhaps the most recognizable wagon in the entire Italian State Railways rolling stock. The F-type 1937 boxcar was one of the first made in an all-metal box with the use of wood limited to the loading bed. The presence of the upper grates and lower adjustable airers (also on the headers), allowed the loading of a very wide variety of goods, including perishable products such as fruit.
The braking system was present by design, of the Breda type with vacuum/load and goods/travelers device. The version with brakeman's cabin is offered with the same features under code MM102. Despite the very long operational life of this wagon, cosmetic changes were very limited in time and mainly concerned the suspension assembly (bushings and leaf springs) and the addition of the through steam pipe. As for the bushings, they were originally produced with oil bushings and then ended their careers with roller bushings.A noteworthy modification was made after the war, when some wagons were converted to passenger service to make up for the lack of passenger stock due to bombing. Outwardly, the most notable difference was the presence of suitable stairs for passengers to climb, while the interior was modified by adding simple wooden benches. They were later converted or demolished.
Model features

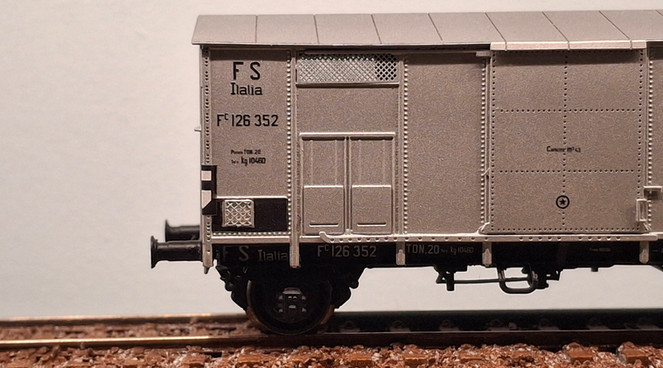

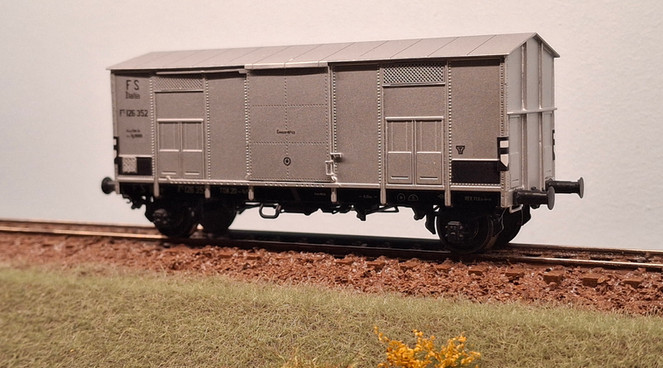

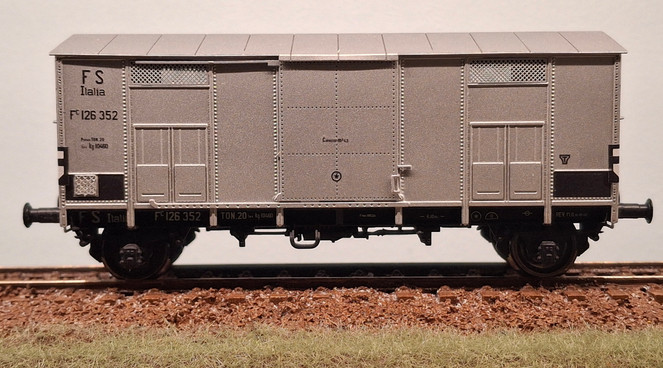

The perfect H0 scale model is made of metal and resin, with the main parts of the body, chassis and roof made of 0.4mm photoetched nickel silver and the aesthetic details of the underbody made of high-definition molded resin. Axles and coupling holders are NEM standard. The buffers are in cast metal.
Versions and variants
The F-Type 1937 wagon is available in the following versions. Each is consistent with the period and era of the setting. Different numbering options are available for each version. In addition, versions with an open loading door and interior reproduction are also available.
F-Type 1937 wagon FS Italia - Era III

MM10111 - Fc 116 369
MM10112 - Fc 114 126
MM10113 - Fc 1 115 952
MM10114 - Fc 1 117 527
F-Type 1937 wagon with experimental aluminum body FS Italia – Era III

MM10121 - Fc 126 352
F-Type 1937 wagon UIC - Era IV

MM10141 - Ghms 162 6 440-5
MM10142 - Ghkkms 162 8 477-5
MM10143 - Ghkkms 162 8 922-0
F-Type 1937 wagon used for passenger service FS Italia - Era III

MM10151 - Fc 1 148 117
MM10152 - Fc 1 147 923
MM10153 - Fc 1 148 101
F-Type 1937 wagon with open door FS Italia - Era III

MM10311 - Fc 118 350
MM10312 - Fc 123 117
MM10313 - Fc 1 129 931
MM10314 - Fc 1 121 709
F-Type 1937 wagon used for passenger service with open door FS Italia - Era III

MM10351 - Fc 1 148 117
MM10352 - Fc 1 147 923
MM10353 - Fc 1 148 101
F-Type 1937 wagon DR - Era III

MM10161 - G 02-31-57
MM10162 - Gu 02-31-54
